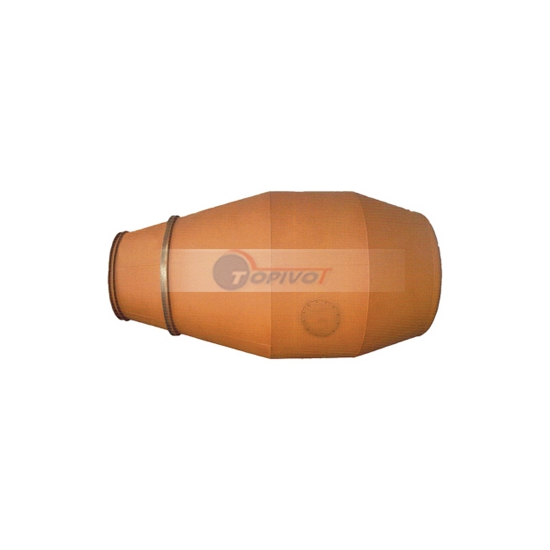

Concrete Mixer Drum 9 CBM

Concrete Mixer Drum 9 CBM

Cold pressing blades, long working life
  • item no.:

    9m3 drum
  • Payment:

    T/T
  • product origin:

    China
  • Color:

    Customized
  • shipping port:

    Ningbo/Shanghai/Tianjin/Qingdao
  • Lead Time:

    30 days
  • Product Details

Concrete Mixer Drum 9 CBM

  • Concrete Mixer Drum
  • Mixing volume: 9 CBM
  • Wear-resisting alloy material
  • Drum body thickness: 5mm or 6mm
  • Drum sections are jointed by output clamping mould
  • Cold pressing blades
  • A round bar be welded on the top of blades to extend working life
  • Reinforced spun formed drum head
  • Forged drum track ring
  • Feeding and discharging fastly
  • Filling rate: 60%
  • Discharge speed: >2.0m3/min
  • Surplus ratio: <1%
  • Mixing sufficiently
  • Rotate speed: 0-16rmp
  • With primer paint
