item no.:
Mixer 5m3Payment:
T/Tproduct origin:
ChinaColor:
Customizedshipping port:
Ningbo/Shanghai/Tianjin/QingdaoLead Time:

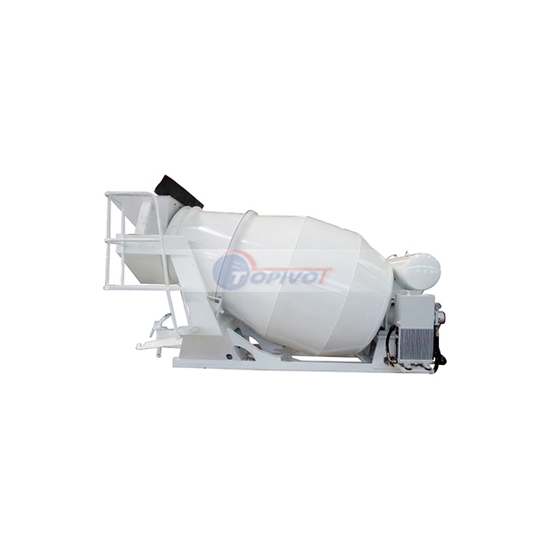

30 daysConcrete Mixer Upper Assembly 5 CBM
|
Overall parameters |
Model |
5m3 concrete mixer |
|
Weight of mixer |
13000kg |
|
|
Dimension of upper parts |
Customized | |
|
Drum specification |
Geometric volume | 8m3 |
| Length of mixer upper parts | 6200mm | |
| Mixing volume | 5m3 | |
| Drum rotations | 0-16rmp | |
| Feeding speed | >3.0m3/min | |
| Diameter | 2300mm | |
| Mixing drum angle | 15° | |
| Quantity of roller | 2pcs | |
| Filling ratio | 60% | |
| Discharge speed | >2.0m3/min | |
|
Hydraulic system |
Reducer | PMB6 |
| Oil pump | Sauer90 75cc | |
| Motor | Sauer90 75cc | |
| Hydraulic circuit | Close loop | |
|
Water supply system |
Water tank capacity | 450L |
| Water pressure | 3.8 bar | |
| Water supply mode | Pneumatic | |
|
Control system |
Control mode |
Mechanical control |
